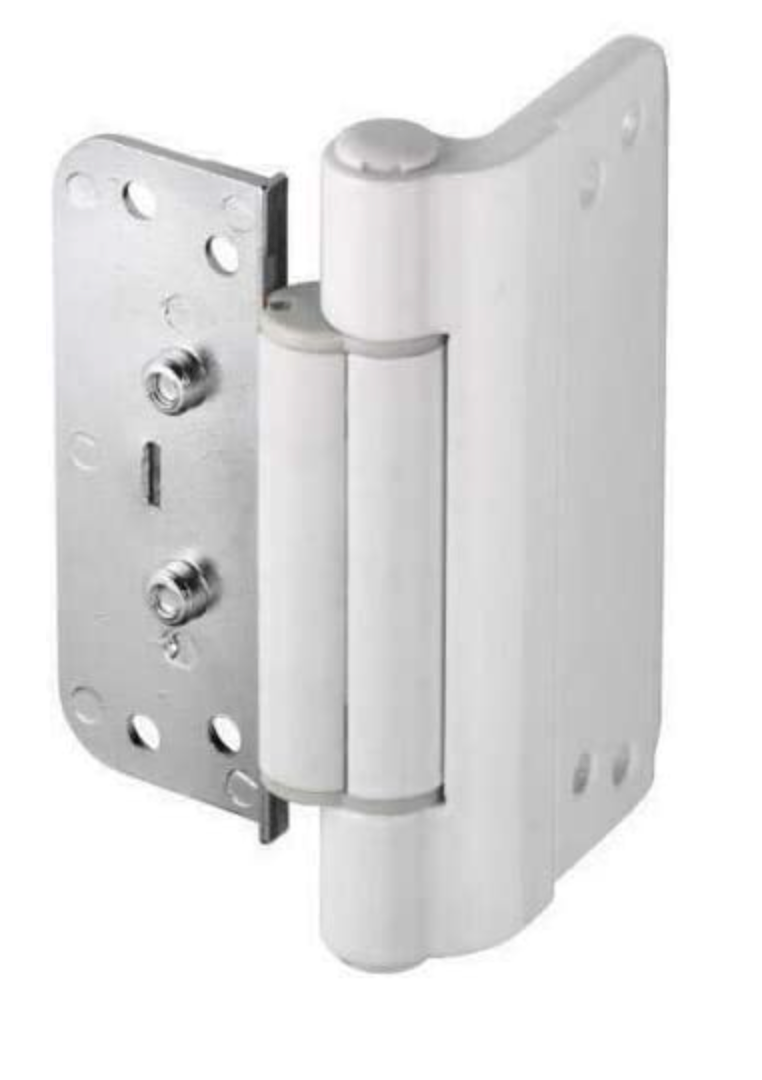

Trojan 3D Adjustable Butt Rebate Composite Door Hinge, Available in White and Polished Chrome

TROJAN 3D HINGE FOR COMPOSITE DOORS

The 3D Composite Door Hinge offers the unbeatable combination of innovation and quality. The hinge is quick and simple to fit and once fitted the door slab is detachable from the frame, thus simplifying installation. The 3D Hinge is easily adjusted in all planes, either in the factory or onsite, ensuring perfect door alignment for years of trouble-free operation.

FEATURES & BENEFITS

• A butt hinge with full 3D adjustment for a perfect door fit.
• Simultaneous vertical adjustment across all hinges which ensures even load distribution.
• All finishes UV rated.
• Lateral Adjustment is done in a single operation which gives a perfect alignment on the pivot axis.
• Fits into rebate to give unobtrusive secure design.
• Can achieve PAS 23/24 accreditation as part of a specific door assembly.
• Sash can easily be removed from frame for easy installation.
• Pre-assembled, ready to fit design.

SPECIFICATION

Zinc die cast components. Stainless steel parts - 430. Plastic parts are Nylon 66, UV stabilised ABS. Corrosion tested to BS EN 1670. Painted finishes Grade 5, plated finishes Grade 4.  Operational durability-tested to 100,000 cycles. Can achieve PAS 23/24 as part of a specific door assembly. 3 hinges can carry up to 100kg. Maximum recommended door size - 1m wide x 2.2m high. Lateral +/- 3mm. Vertical +/- 4mm.  Compression +/- 1.75.
